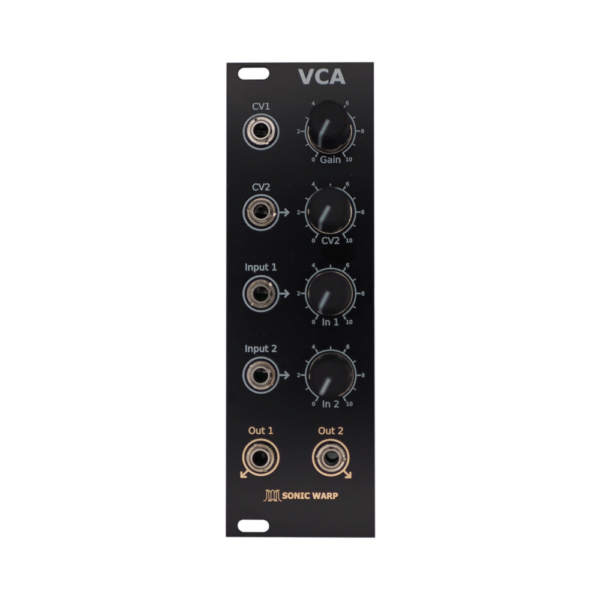

Classic VCA

Format : Eurorack
Width : 8 hp
Depth : 28 mm (incl. power cable)
Output Impedance : 1K Ohms
Current : 14mA @-12V  12mA @+12V

82,00

5 in stock

A classic linear VCA that use a LM13700 OTA (Operational Transconductance Amplifier) as it’s core. The 2 inputs are DC coupled and each have an attenuator knob. There is 2 CV inputs with one that can be attenueted. The gain knob can be used for creating drones if you don’t have a CV signal to feed in. You have to feed in a 5V positive signal to obtain unity gain. Signals greater than 5V can be attenuated by the CV2 knob. The distortion is very small (<2%).
